SF16 Silicon Super Fast Rectifier Diodes for Superior Performance in DO-41 Package

Model NO. : SF16

Structure : Diffusion

Material : Silicon

Transport Package : Ammo Box

Specification : Through Hole

Trademark : JF

Origin : China

HS Code : 85411000

Supply Ability : 10000000000piece/Year

Place of Origin : China

Certification : ISO9001:2015, ISO14001:2015, IATF16949

MOQ : 3,000 Pieces

Price : Negotiable

Delivery Time : Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal

Contact Now

Product Description

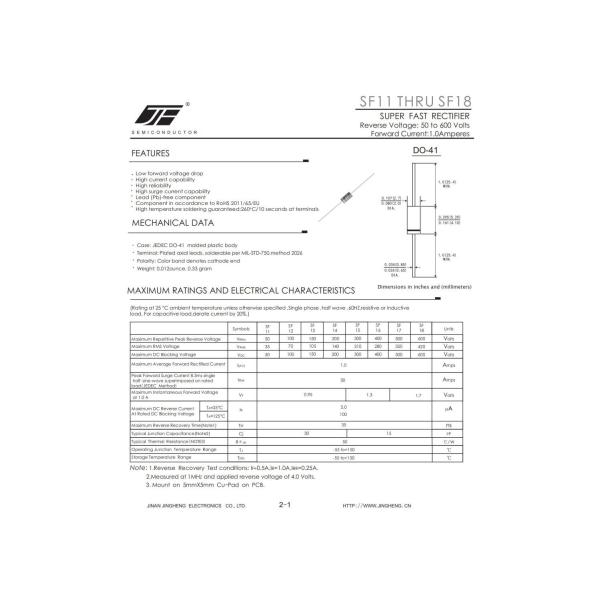

SUPER FAST RECTIFIER DIODES
Electronics Component

Part Number: SF11/SF14/SF16/SF17/SF18

Major Parameter: Reverse Voltage: 50 to 1000 Volts

Type VRRM IF IR(25ºC) IR(100ºC) IR(125ºC) VF Trr Outline
V A μA uA uA V nS
SF11/SF11G 50 1.0 5.0 100 0.95 35 DO-41
SF14/SF14G 200 1.0 5.0 100 0.95 35
SF16/SF16G 400 1.0 5.0 100 1.3 35
SF17/SF17G 500 1.0 5.0 100 1.7 35
SF18/SF18G 600 1.0 5.0 100 1.7 35
MUR120 200 1.0 5.0 50 0.875 25 DO-15
MUR140 400 1.0 5.0 50 1.25 50
MUR160 600 1.0 5.0 50 1.25 50
ES1A 50 1.0 5.0 100 0.95 35 SMA
ES1D 200 1.0 5.0 100 0.95 35
ES1G 400 1.0 5.0 100 1.25 35
ES1J 600 1.0 5.0 100 1.7 35
ES1K 800 1.0 5.0 100 1.7 100
ES1M 1000 1.0 5.0 100 1.7 100
ES1AS 50 1.0 5.0 100 0.95 35 SMAF
ES1DS 200 1.0 5.0 100 0.95 35
ES1GS 400 1.0 5.0 100 1.25 35
ES1JS 600 1.0 5.0 100 1.7 35
E1A 50 1.0 5.0 100 0.95 35 SOD-123FL
E1D 200 1.0 5.0 100 0.95 35
E1G 400 1.0 5.0 100 1.25 35
E1J 600 1.0 5.0 100 1.7 35


Brand: JF

Package: DO-41 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

· Metal silicon junction, majority carrier conduction

· Guard ring for overvoltage protection

· Low power loss, high effciency

· High surge capability, low forward voltage drop
· Surface mount outline

Application:
Used in power supply, lighting, auto, home appliance field
